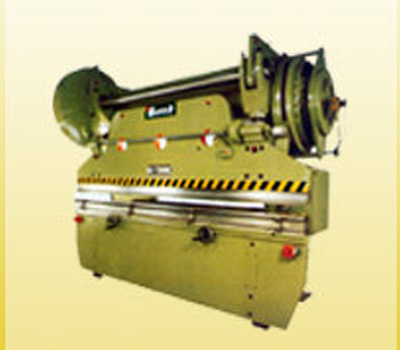

Pneumatic Press Brakes

Bharat Machine tools manufactures pneumatic press brakes machine made from the best raw materials. These are known for their robust structure, low tooling cost, versatility,accurate bending and repetition,easy maintenance etc. Our pneumatic press brakes machines are available at industry leading prices with the following features:

Send Enquiry

Model	BM-25	BM-50	BM-80	BM-100	BM-120	BM-160
Cap. of Mid Stroke Tonne	25	50	80	100	120	160
Cap. at 40* before BDC Tonne	40	63	125	160	200	250
Clear distance between Housing MM	1350	1700	2020	2600	2600	2600
Over all Die space MM	80 x 2050	100 x 2550	120 x 3050	120 x 3150	160 x 3550	160 x 3550
Bending cap. MM	1.6 x 2000	2.5 x 2500	3.5 x 3050	4 x 3500	4.6 x 3500	6 x 3550
Standard Stroke MM	50	63	76	76	80	80
S.P.M.	40	40	36	36	30	30
Ram Adjustment MM	75	75	100	100	125	125
Shut height MM	250	250	315	315	315	315
Throad MM	175	200	225	225	250	250
Main Motor HP/R.P.M.	5/1500	7.5/1500	10/1500	10/1500	15/1500	15/1500
Ram Motor HP/R.P.M.			1/1000	1/1000	2/1000	2/1000
Approx Weight	2750	3800	7200	9500	12500	15500
